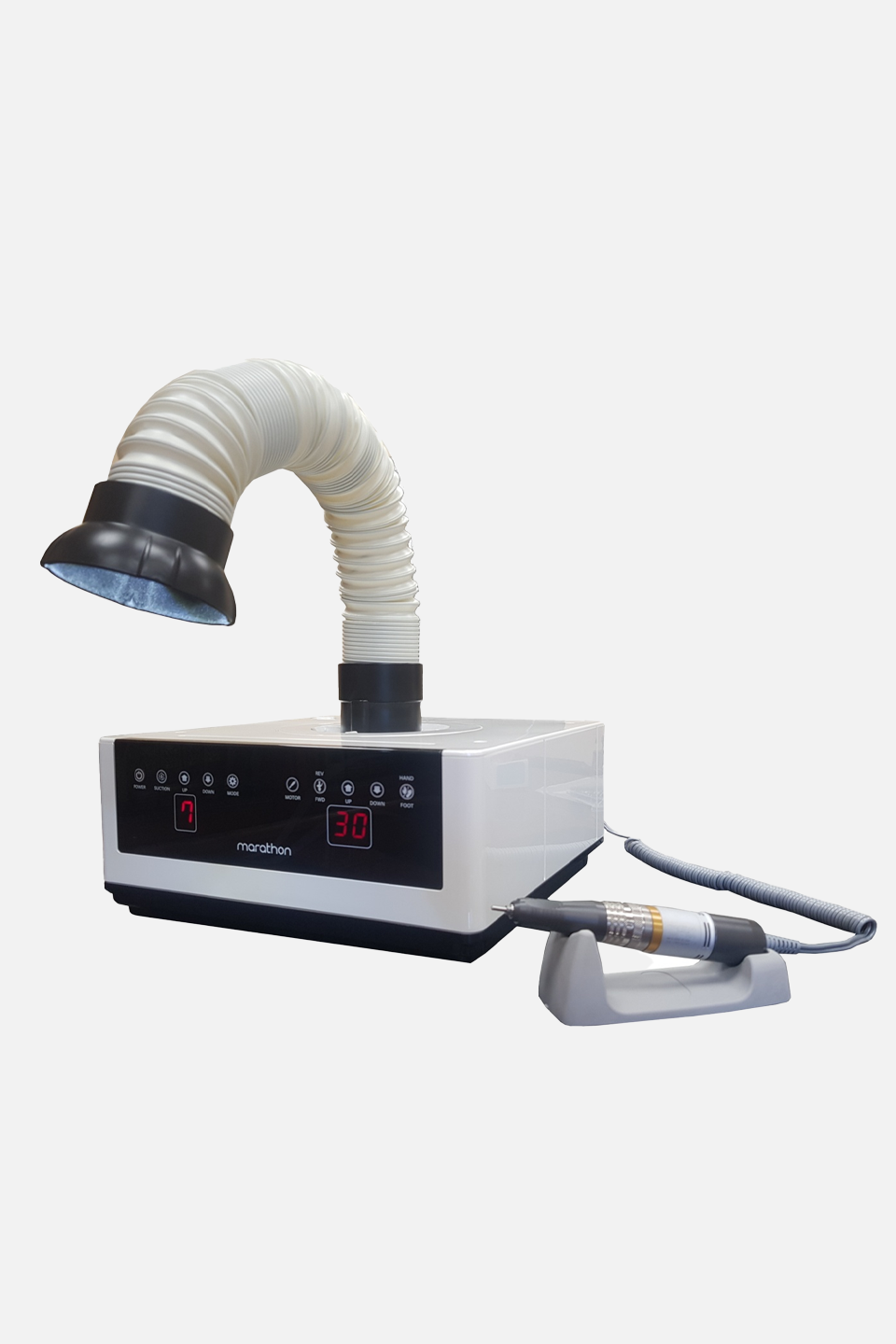

Marathon ASP III cutter aspirator

1. Take the arm and install it on the control unit.
2. Connect the lamp to the appropriate connection.
3. Connect the handpiece (HP) and then the power supply.
4. Turn on the machine with the rear button and an acoustic signal will indicate that it is turned on as a recognition system.
5. To activate the suction, click on the Power button and then Section.
6. Please note:On (yellow) / Off (red)
7. Select the suction power and rotation speed of the cutter: the Up button adjusts the suction power level (maximum 7) while the Down button indicates the minimum level (1).
8. Adjust the tube according to the direction you want to file or use the cutter: from above, from below or from the side.
9. The Mode button indicates the mode change: yellow if the suction occurs via the pedal and red if manual controls with the display.


How to use the cutter:

1. Tap the Front/Reverse button to define the direction of rotation.
2. Click Up or Down to set the rotation speed of the handpiece (1 - 35).
3. Keep the cutter at a maximum distance of 3 cm from the suction mouth to have an effective result and collect all the filing dust.


How to clean and replace filters:

1. Close the hose and detach the LED.
2. Turn the appropriate housing counterclockwise.
3. Remove the filter and proceed with the replacement.
4. Screw the housing clockwise.


• Filters wear out and need to be replaced depending on the amount of work.
